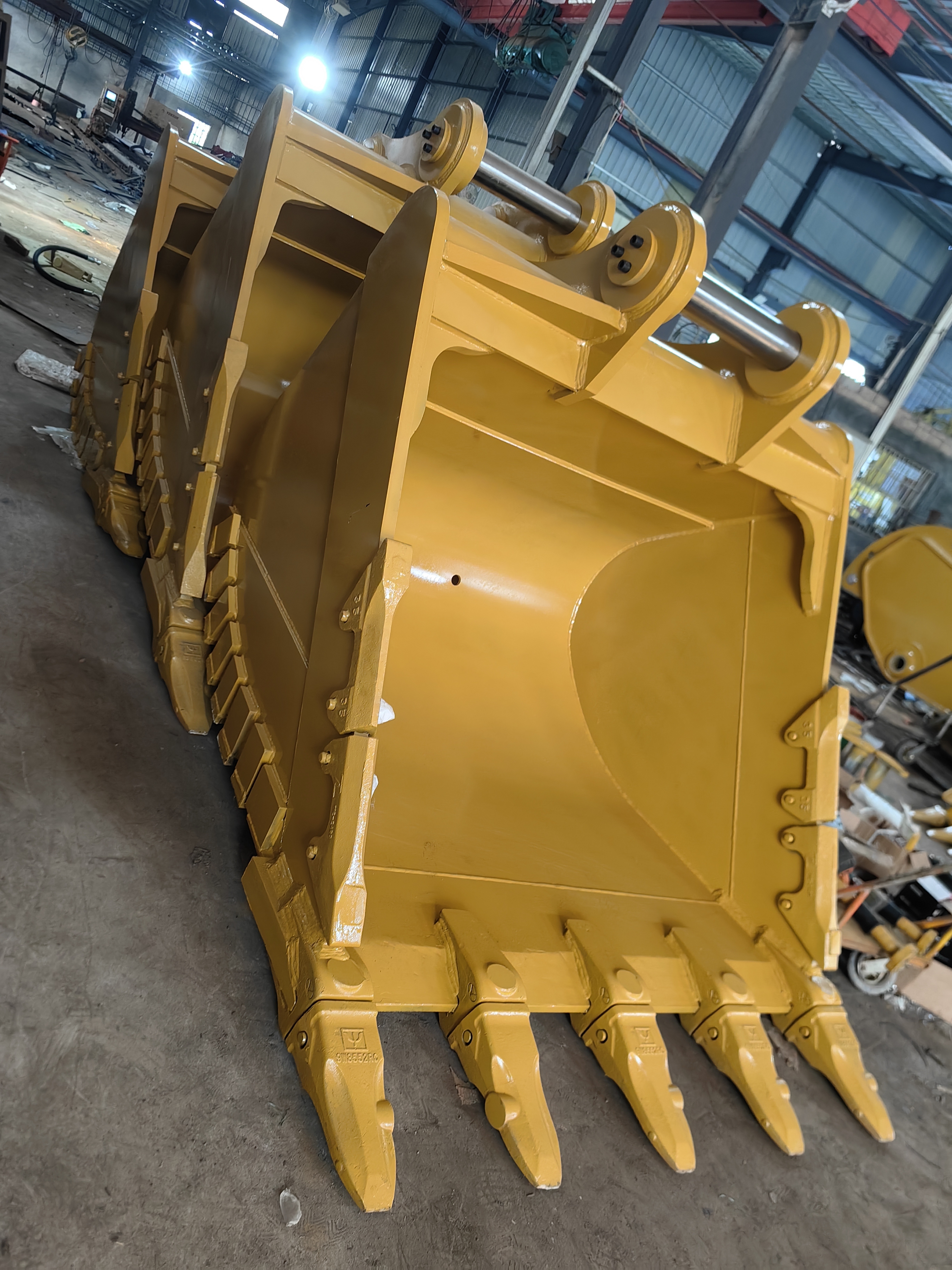

Quick Coupler + Excavator Bucket & Boom Kit: Multi-Attachment Ready
Used for 10-50 tons excavator

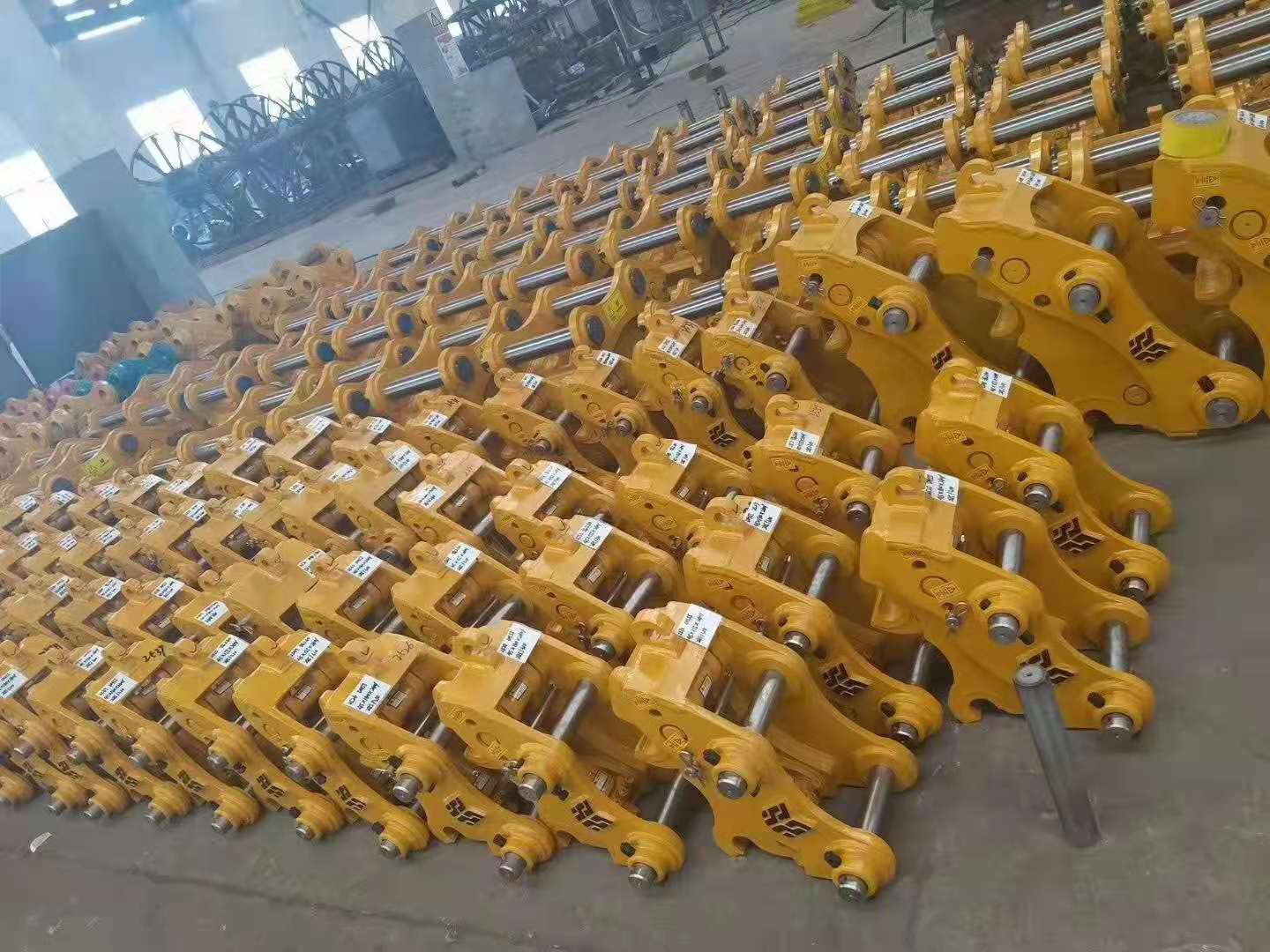

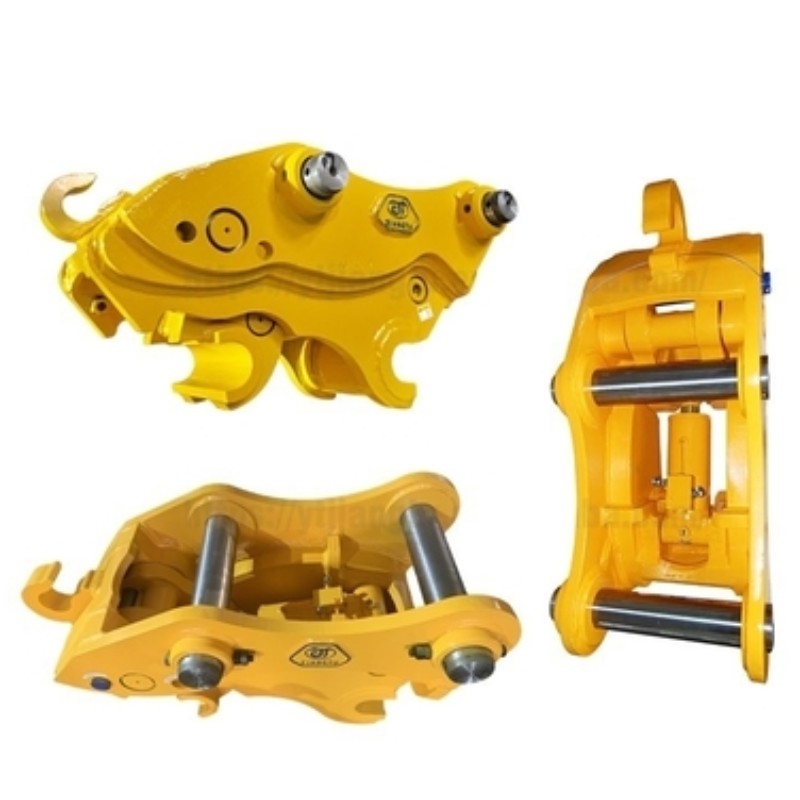

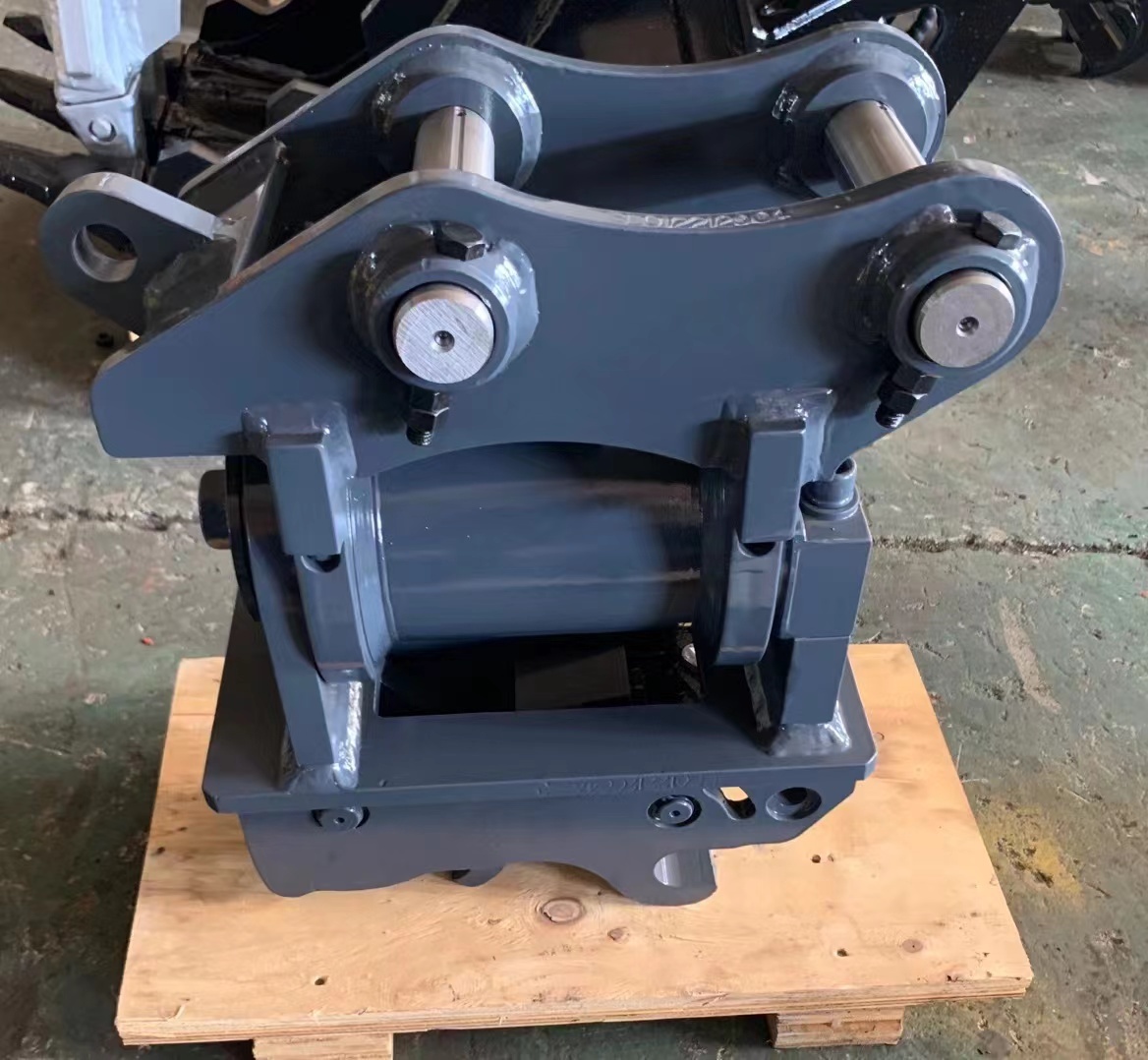

Excavator quick connector characteristics:
1. Use high strength materials
2. Use the safety device of liquid control check valve to ensure safety;
3.The configuration part does not need to be modified, nor without removing the pin shaft can be replaced.
4.Move the switch can complete the exchange between the digging bucket and the crushing hammer.
5. It is mainly used in the workplace where the front-end working device of the excavator should be replaced frequently.
Model |
Carrier Weight (ton) |
Pin Diameter (mm) |
Arm Width (mm) |
Pin Center Distance (mm) |
Cylinder Scaling Distance (mm) |
Pressure (kg/cm²) |
Oil Flow (L/min) |
Weight (kg) |
Dimension (mm) |
TDC02 | 4-4.5 | 45-50 | 155-170 | 230-270 | 205-270 | 40-380 | 10-20 | 85 | 650*350*350 |
TDC04 | 6-8.5 | 50-55 | 180-200 | 290-360 | 340-450 | 40-380 | 10-20 | 100 | 700*400*400 |
TDC06 | 9-16 | 60-70 | 232-315 | 380-420 | 340-486 | 40-380 | 10-20 | 200 | 850*500*450 |
TDC08 | 17-22.5 | 70-80 | 306-340 | 460-480 | 256-590 | 40-380 | 10-20 | 400 | 1000*520*600 |
TDC10 | 23-32 | 80-90 | 325-350 | 473-540 | 413-590 | 40-380 | 10-20 | 600 | 1050*600*650 |
TDC17 | 33-45 | 90-120 | 416-469 | 550-620 | 520-590 | 40-380 | 10-20 | 700 | 1100*600 |
